Summary

Led end to end design for DynamoDB's resource-based policies feature that allows customers to manage access permissions directly on DynamoDB tables and streams.

This replaced the previous identity-based policy system and simplified cross-account access management.

_{DynamoDB resource-based policies in create flow}

Problem

DynamoDB's identity-based access control had three main limitations:

1. Permission Management: Access permissions had to be defined in multiple IAM policies across different AWS accounts
2. Cross-Account Setup: Required creating IAM roles in both accounts and setting up trust relationships
3. Maintenance Overhead: Each new cross-account access required updating multiple IAM policies

This affected large AWS customers including Zoom, JP Morgan Chase, Snap, and Capital One.

Success Metrics

Tracked three key metric categories:

Adoption:

• Policy adoption rates for tables and streams (total count and % per customer)
• Enterprise customer feedback and satisfaction

Task Success:

• Creation success rate for tables with policies
• Success rate of policy additions to existing resources

Usability:

• Drop-off rates in creation/policy flows

Key Design Decisions

1. Multi-Step Creation Flow

Analysis of 6 months of usage data showed:

• 71.33% of customers created default tables
• 28.67% used advanced configurations

Implementation:

1. Four-step creation process: details → settings → permissions → review
2. Added quick create option for default tables
3. Advanced features like resource policies shown only when needed

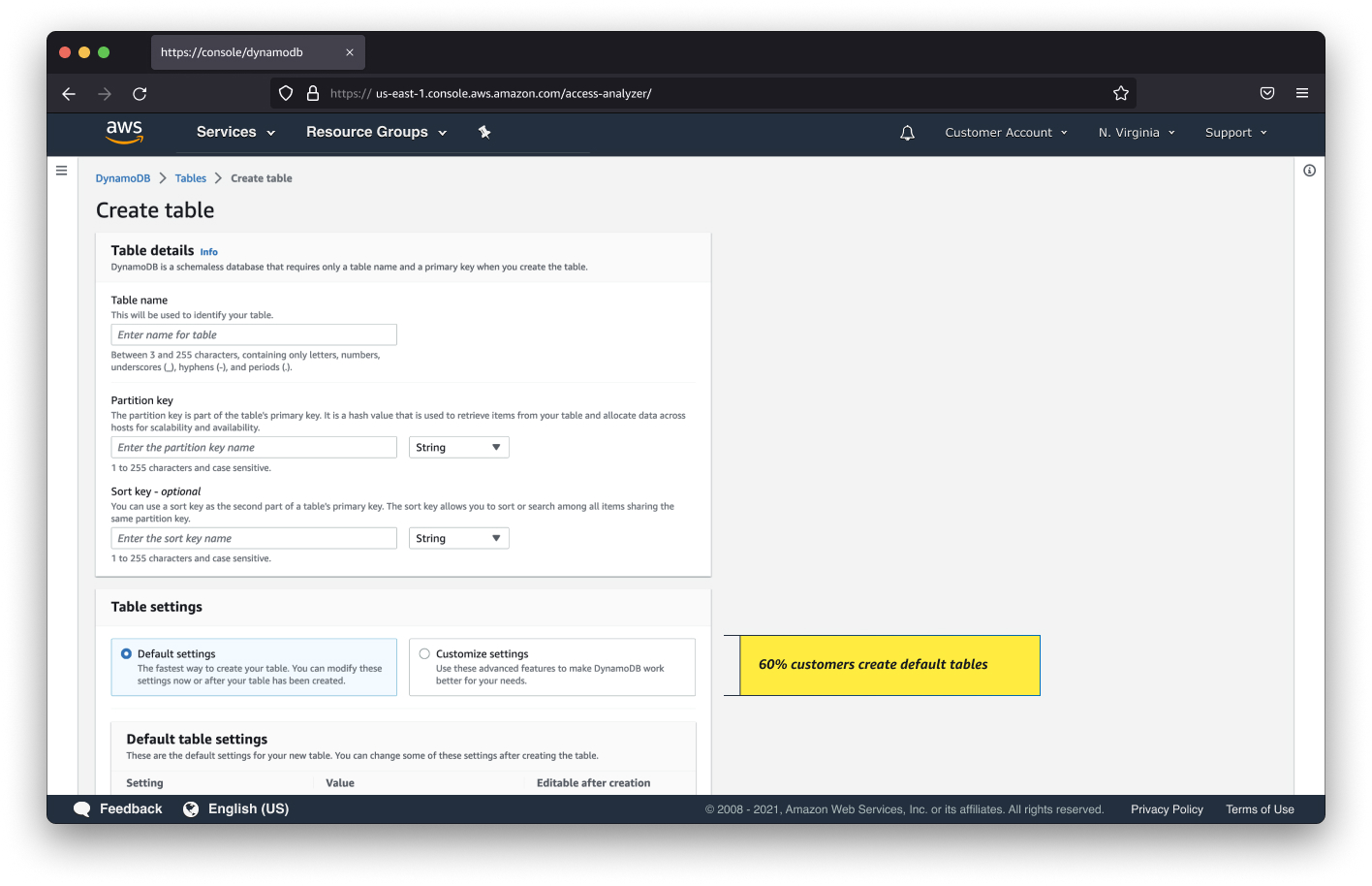

_{Single page creation}

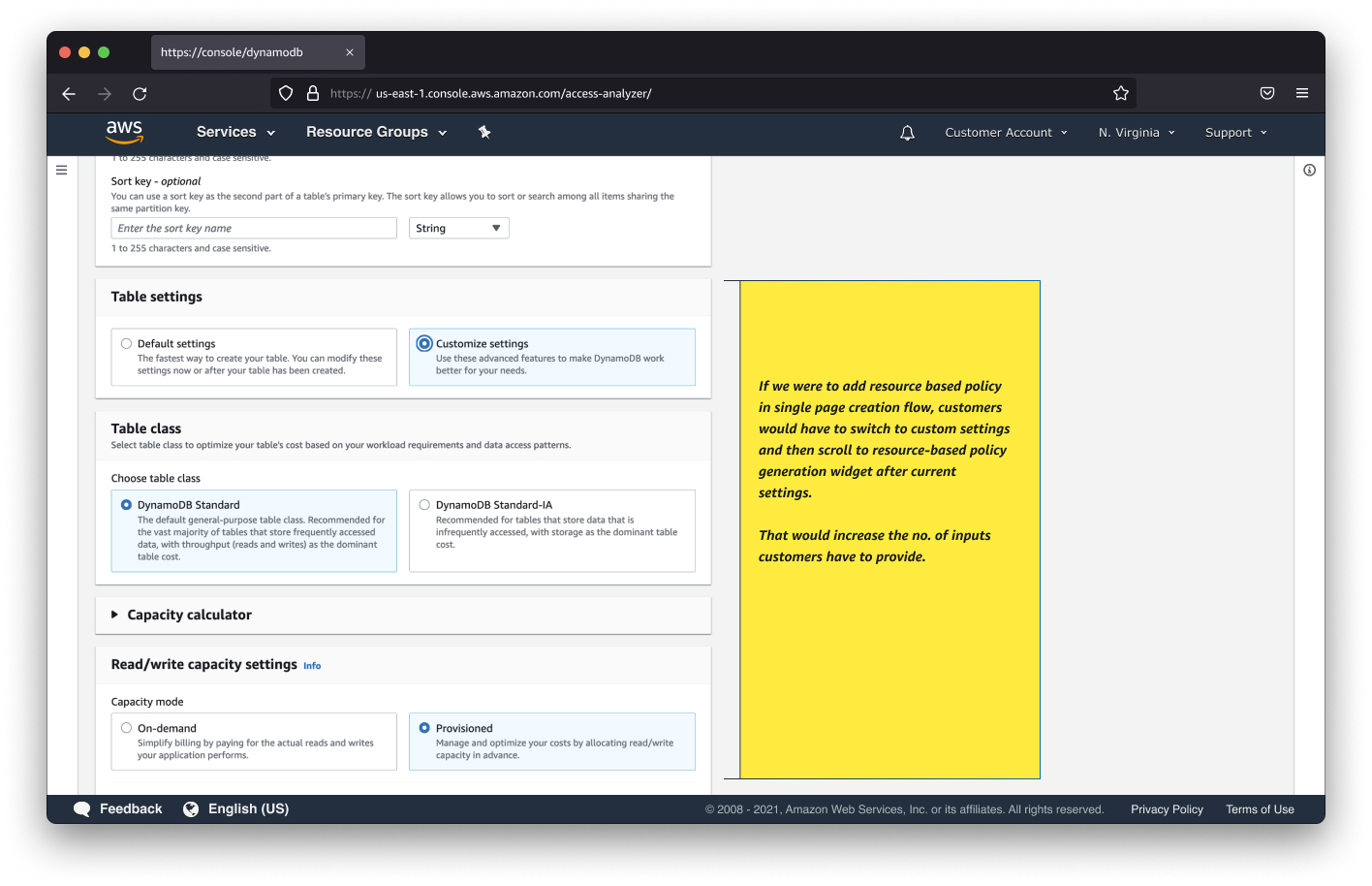

_{Issues with single page creation}

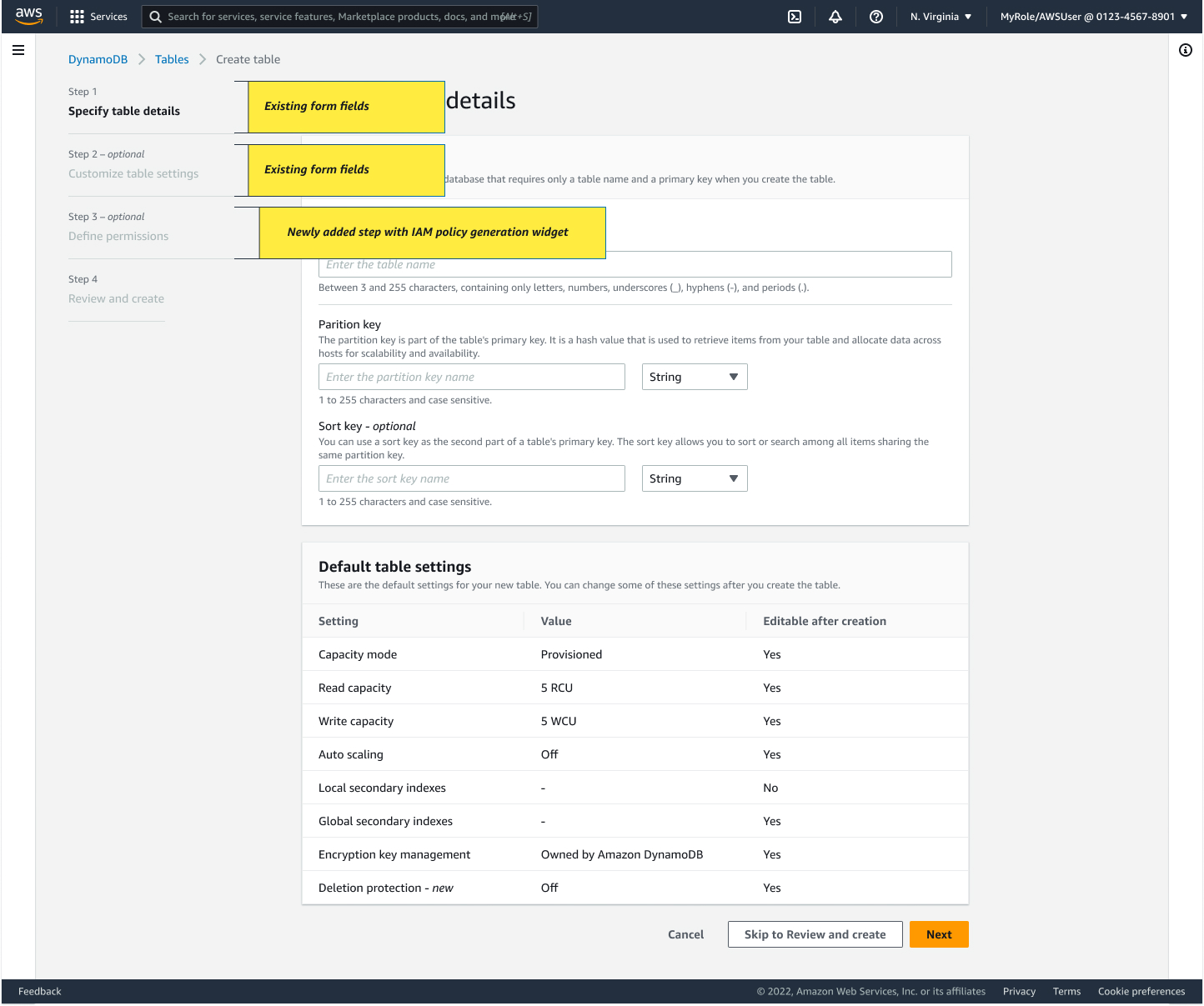

_{Introducing multi-step creation and adding permission step}

This approach balanced two key user needs:

• Maintaining simplicity for novice users creating default tables
• Supporting advanced users with complex configuration needs

2. Policy Editor Implementation

We faced a critical decision between building an in-house solution versus leveraging existing components:

We chose to be frugal and leverage the existing IAM policy APIs to power the policy editor, focusing our efforts on improving the integration points and user experience.

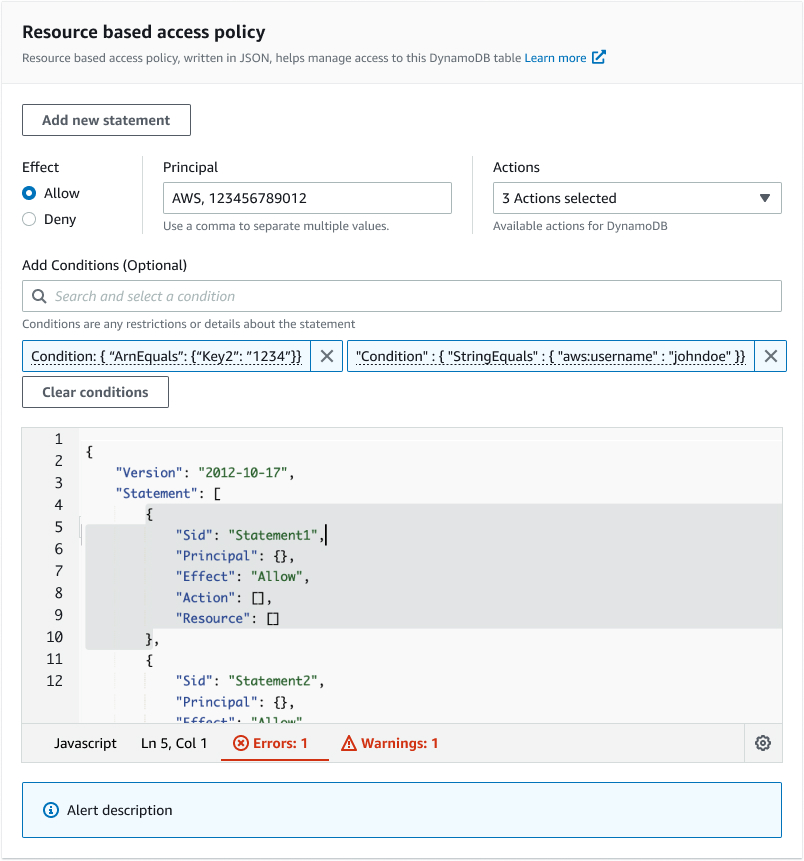

_{Policy creation widget v1}

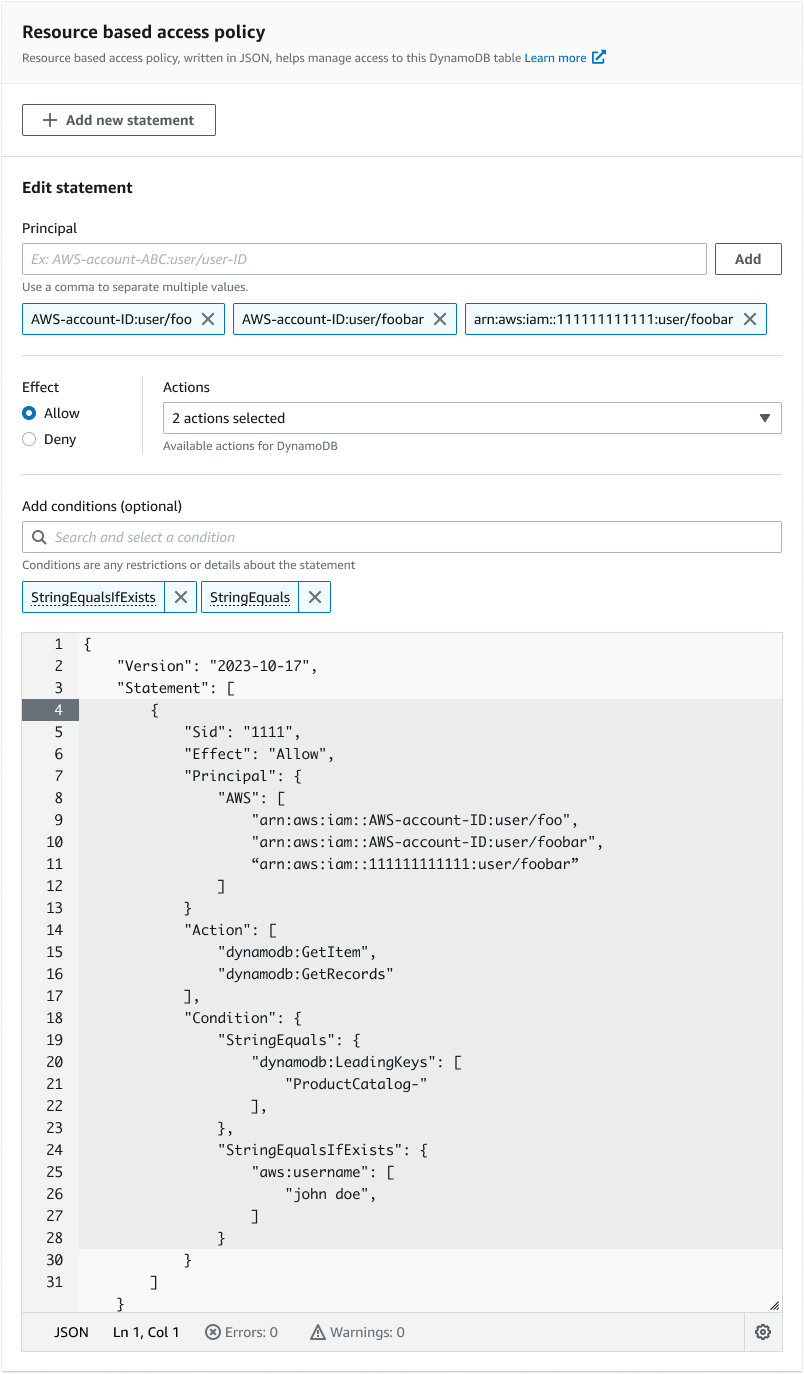

_{Policy creation widget v2}

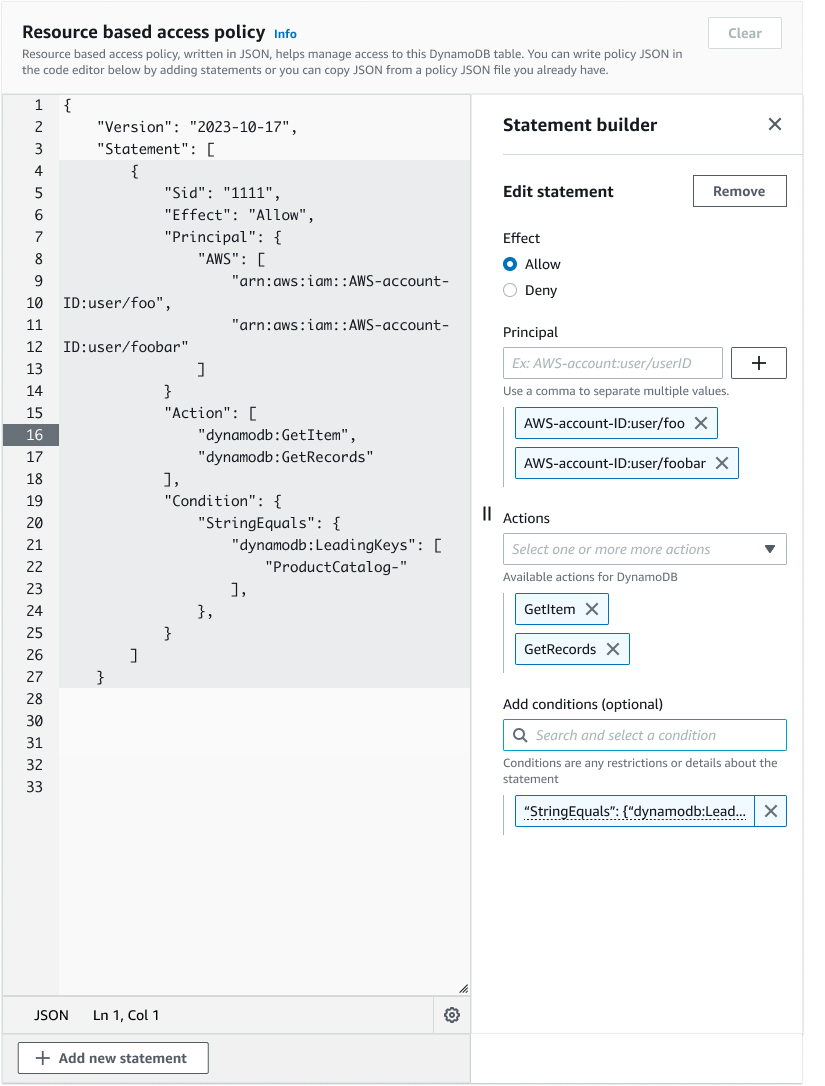

_{Policy creation widget v3}

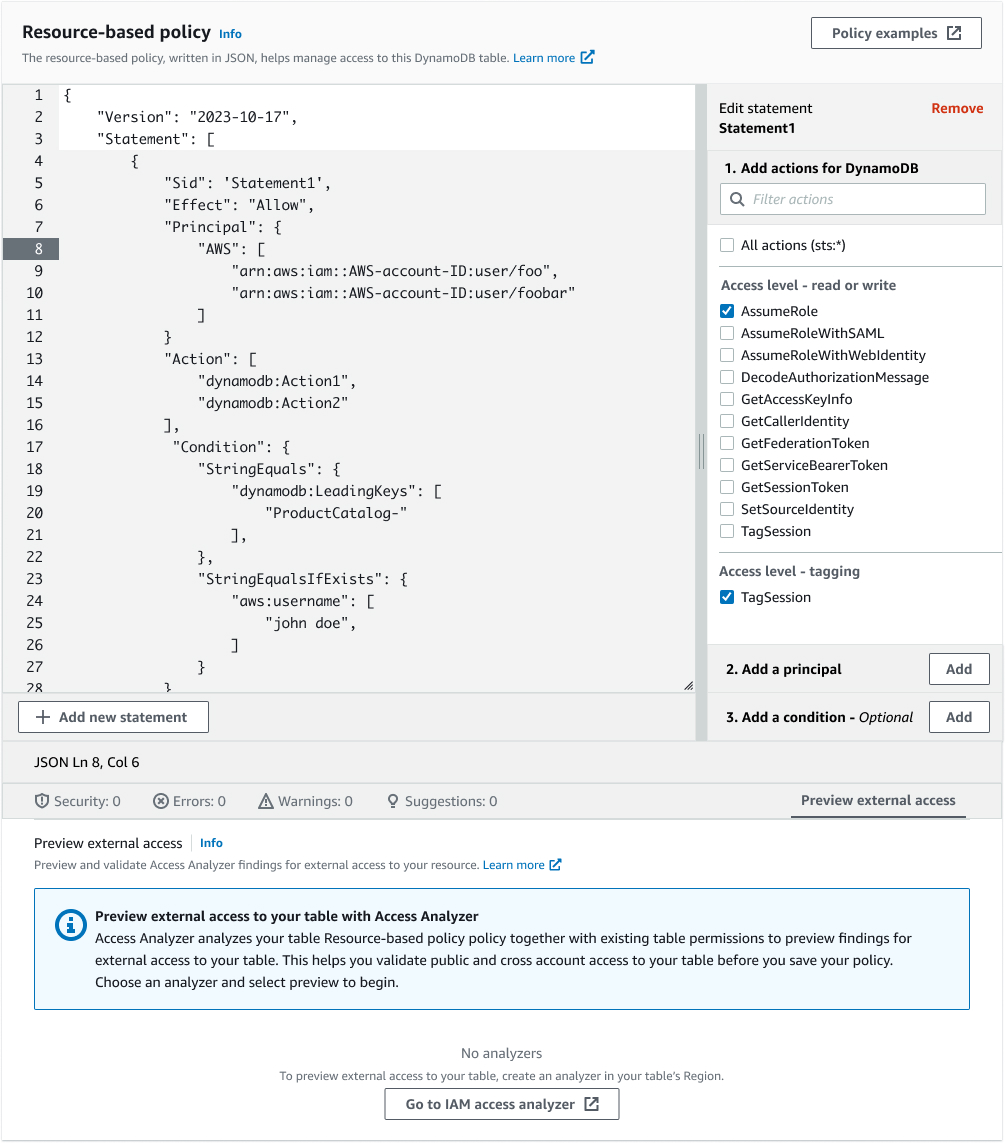

_{Policy creation widget v4, using existing IAM policy widget APIs (Launched)}

Core Features

Resource-Centric Authorization

• Centralized permission management at the resource level
• Fine-grained access control for tables and their indexes
• Simplified cross-account access management

Policy Generation Experience

• Integrated IAM Access Analyzer for policy validation
• Resource-pivoted view of access analyzer findings
• Streamlined policy authoring interface

Multi-Page Creation Flow

• Redesigned table creation workflow
• Scalable configuration system for advanced users
• Simplified long-form input patterns

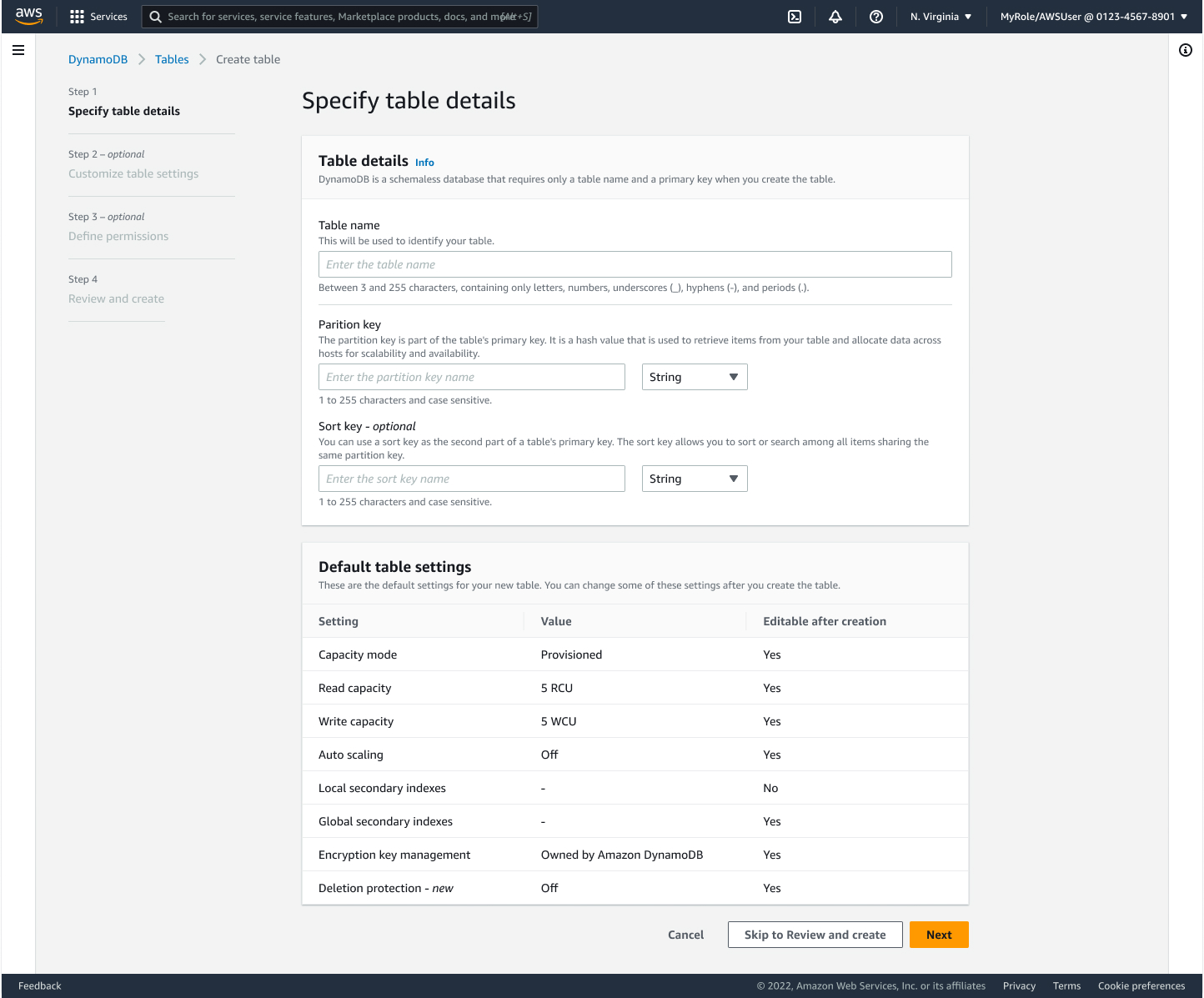

_{Multi-step create flow step 1 with quick create for default tables}

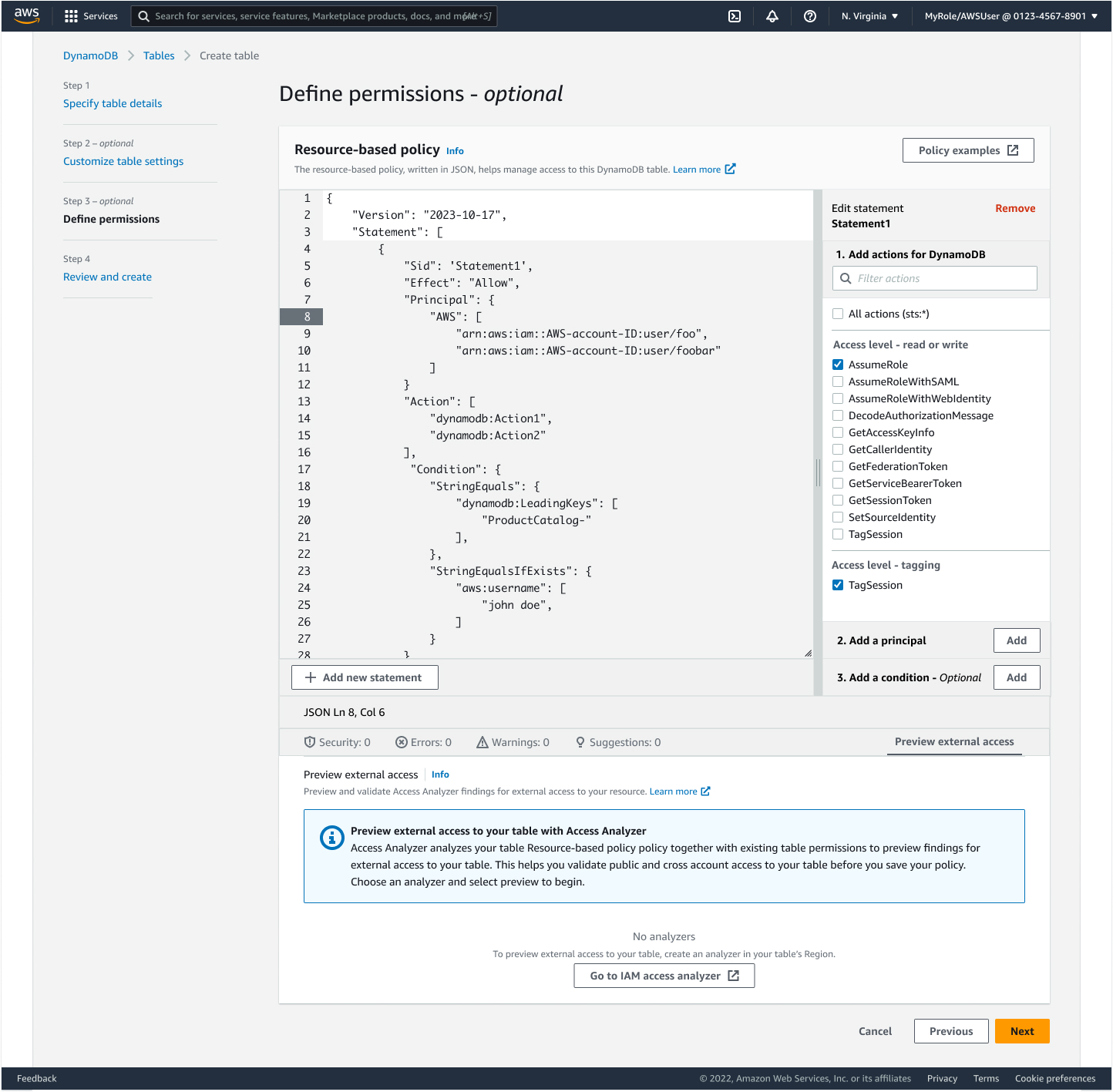

_{Multi-step create flow step 3, dedicated step to define permissions using policy widget}

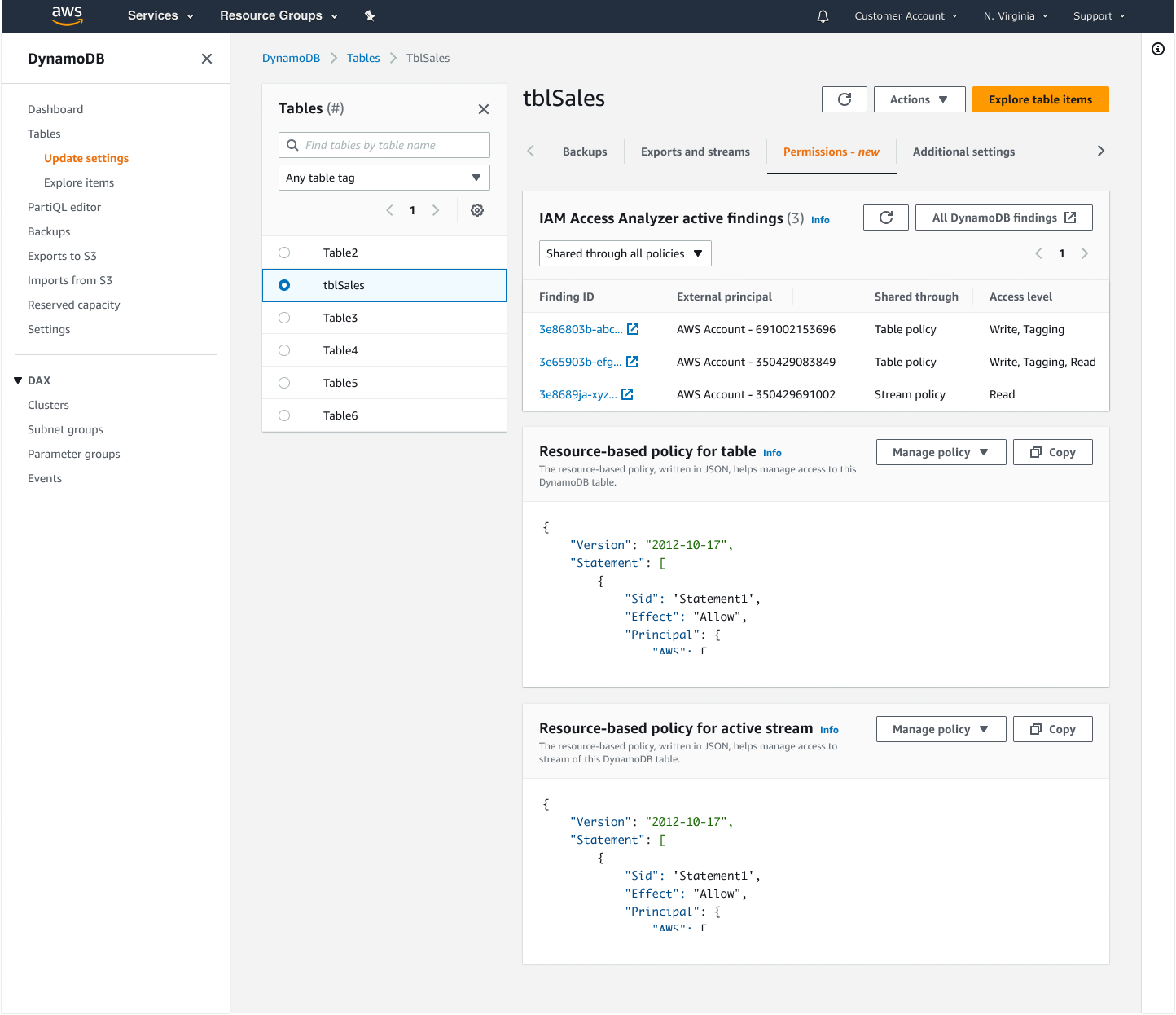

_{Table detail view with a dedicated table to manage permissions for the table}

Challenges

Technical Integration

• Enhanced widget capabilities through IAM team collaboration
• Resolved cross-console API limitations for permission detection

Cross-Team Alignment

• Drove IAM Access Analyzer integration and resource-view roadmap
• Coordinated implementation across IAM, Security and Legal teams
• Ensured compliance with AWS security standards through legal review

Impact

1. Technical Improvements:

   • Reduced cross-account setup steps from 7 to 2
   • Centralized permission management per resource
   • Added automated policy validation

2. User Experience:

   • Simplified multi-step table creation
   • Added guided policy creation
   • Improved error handling and validation

Learning

What Worked:

• Using existing IAM components saved 3 months of development
• Early security team involvement prevented rework

Issues Faced:

• Required additional error handling for cross-account scenarios
